Hawk

breadcrumb wireless nodes

Rajant Breadcrumb Hawk Series:

Introducing the Hawk, one of Rajant’s newest industrial-grade high-performance BreadCrumb platforms that offer dual MIMO transceivers, up to 1.7Gbps aggregated data rate, higher throughput, and enhanced security performance.

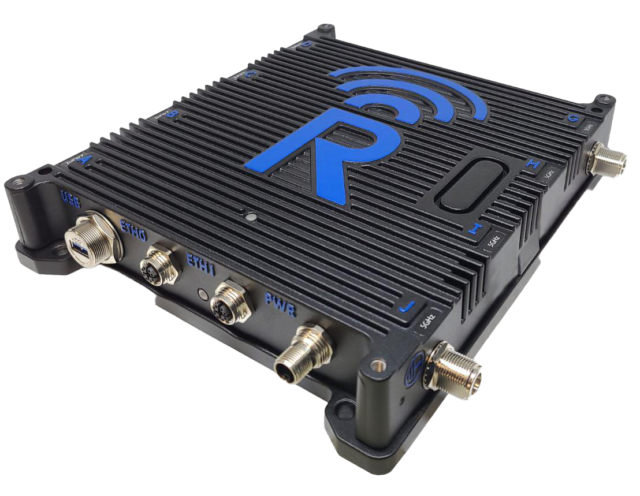

The Rajant Hawk is a powerful, dual-radio, industrial-grade wireless mesh node. Featuring our patented InstaMesh protocol, the Hawk delivers higher throughput and enhanced security through advanced technologies like 256QAM, 80 MHz channels, and hardware acceleration. It’s built to perform reliably in extreme environmental conditions and offers versatile mounting options. With two transceivers, it provides MIMO operation across multiple frequencies, ensuring robust and resilient connections. This platform combines high-speed, flexible mobile connectivity to reliably power new edge applications with unlimited coverage via a Layer-2 multi-radio mesh fabric that extends throughout your deployment.

Rajant BreadCrumb® Hawk Series

The Hawk node is a leading solution in Rajant’s efforts to create deeply integrated systems. These systems securely combine data from connected people, vehicles, machines, and sensors, then enhance it with machine learning. The Hawk is engineered for optimal mobility and includes two transceivers to provide high-performance data flow for demanding applications like LiDAR and CCTV when operating within a Peregrine infrastructure. Its high throughput and enhanced security make the Hawk a top choice for IoT/IIoT mobility in today’s autonomous networks.

Key Features:

  • Dual 2×2 MIMO radio: One 2.4 GHz transceiver (300 Mbps signaling rate; DSS, CCK, and OFDM) plus one 5 GHz transceiver (866 Mbps signaling rate; OFDM with 256QAM; up to 80MHz channel bw; U-NII-1, 2A, 2C) OR two 5 GHz transceivers (866 Mbps signaling rate; OFDM with 256QAM; up to 80MHz channel bw; U-NII-1, 2A, 2C and 3 (5.15 to 5.85GHz).

  • Interfaces: Ethernet – two M12 10/100/1000 auto MDIX with support for IEEE 802.3bt Type 3 or 38 to 60 VDC Passive PoE; no squid cables; USB: – USB 2.0 Type A host; DC power – 20 to 60V; and power consumption – 16W average, 36W peak.

  • Integrated 802.11AC Wi-Fi Access Point and client service for compatibility with millions of commercial off-the-shelf Wi-Fi client devices such as laptops, tablets, smartphones, IP cameras, sensors, and other IP devices

  • Enclosure rating: IP67.

  • Security: Configurable per-hop, per-packet authentication between BreadCrumbs; multiple cryptographic options; and optional MAC address encryption.

  • Form Factor: 264.9 mm x 253.7 mm x 46.2mm (10.43” x 9.99” x 1.82”) and 2946 g (6 lbs. 7.9 oz.).

  • Temperature: Ambient (operating) -40°C to 70°C (-40°F to 158°F) and storage: -40°C to 80°C (-40°F to 176°F).

  • Max RF TX Power: 30 dBm conducted.
