Peregrine

award winning breadcrumb wireless nodes

Rajant Peregrine:

The Peregrine LTE is Rajant’s high-performance BreadCrumb equipped with LTE capabilities, allowing agile and reliable machine-to-machine and peer-to-peer communications.

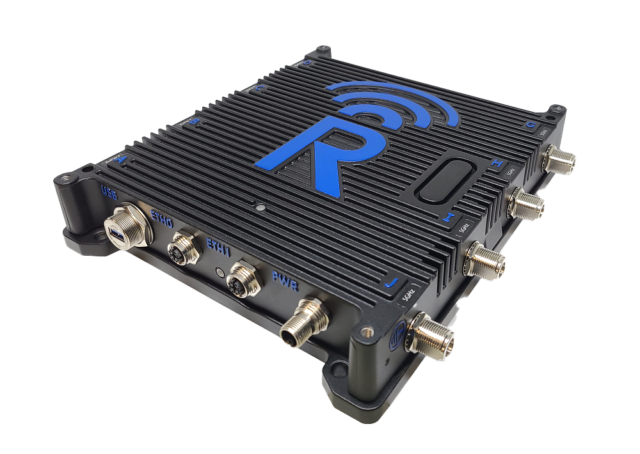

Rajant Peregrine LTE BreadCrumb®

The Peregrine LTE seamlessly integrates with all our existing network nodes, marking a significant step in our strategy to create deeply unified solutions. These solutions securely merge data from personnel, vehicles, machinery, and sensors with advanced machine learning (ML) capabilities. This new, high-performance, industrial-grade platform ensures secure connections to back-end networks using our proprietary tunneling technology, while actively utilizing multiple frequencies to minimize interference and network congestion.

By employing real-time, automated packet routing, the Peregrine LTE consistently selects the optimal path for every data packet. This powerful data integration unlocks significant advantages like process optimization, digital twins, predictive analytics, augmented reality (AR), virtual reality (VR), and more, all while enhancing worker safety. Its ability to maintain a reliable connection in highly obstructed, cluttered, or shadowed environments makes the Peregrine LTE an excellent choice for expanding capabilities in sectors such as rail, shipping ports, military, mining, and heavy construction.

Key Features:

  • Multiple Radio Frequencies: 2.4 GHz, 5 GHz, carrier and private LTE as well as military, licensed, public service, and other proprietary radio frequencies

  • Interfaces: Ethernet – two M12 X-Code female connector, 10/100/1000 Mbps, IEEE 802.3, auto MDI/MDIX

  • Max RF TX Power: 23 dBm

  • Power Consumption: 4 transceivers: 10 W (average, idle); 34 W (maximum, peak) @ 48 V

  • Form Factor: 264.9 mm x 253.7 mm x 46.2 mm (10.43 in x 9.99 in x 1.82 in) and 2946 g (6 lbs 7.9 oz)

  • Integrated 802.11AC Wi-Fi Access Point and client mode service for compatibility with millions of commercial off-the-shelf Wi-Fi client and access point devices

  • Security: Support for several strong cryptographic options used for data and MAC-address encryption and per-hop, per-packet authentication

  • Enclosure rating: IP67

  • Temperature: Startup: -40 °C to +70 °C (-40 °F to 158 °F); Ambient (operating): -40 °C to +70 °C (-40 °F to 158 °F); and Storage: -40 °C to +80 °C (-40 °F to 176 °F)
